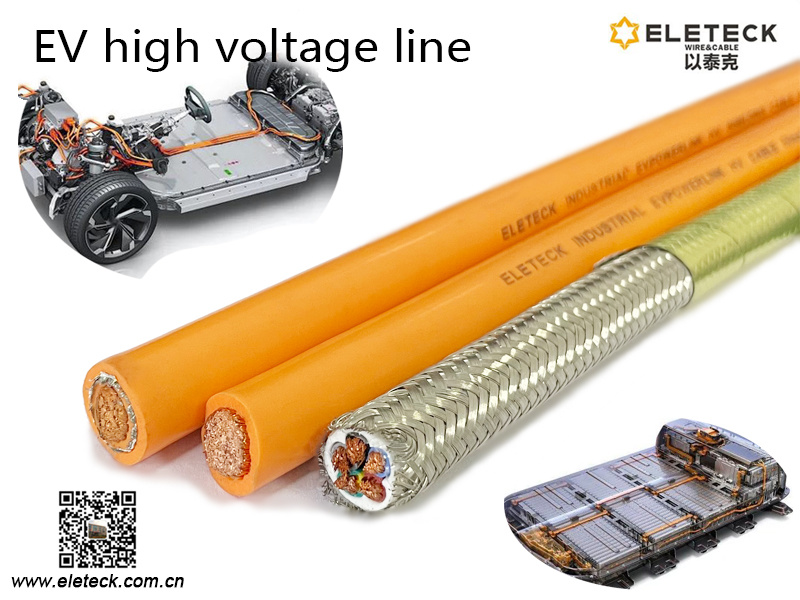

Main application occasions and common specifications of high voltage lines for new energy vehicles
Drive motor I MCU ------- 35mm2, 50mm2, 70mm2 * 3
Air conditioning system I PDU ------- 2.5mm2, 4mm2, 6mm2 * 2
Small battery - DC / DC ------- 10mm2, 16mm2, 25mm2
DC / DC - PDU - 16mm2, 25mm2 * 2
MCU - PDU ----------------- 35mm2, 50mm2, 70mm2 * 2
One battery of on-board charger - 6mm2, 10mm2
Battery I PDU --------------- 50mm2, 70mm2 * 2
Battery I DC charging base ----- 35mm2, 50mm2, 70mm2 * 2 (the above specifications and selection are only for reference, which shall be determined in combination with the actual requirements of the whole machine)
Select the corresponding high-voltage line of new energy vehicles according to the actual use scenario. For in-depth understanding, please log in to the official website of Eleteck to consult Eleteck engineers.
The above information is from the official website of Huizhou Eleteck wire and cable Co., Ltd. www.eleteck.com.cn. If you want to know more information about high voltage lines of new energy vehicles, please collect the website.
