Describe

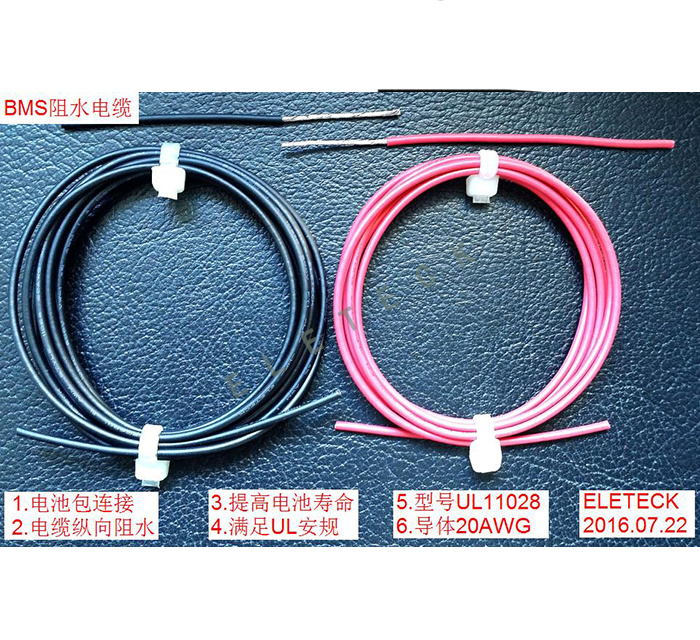

UL11028 Water Blocking Wire



Conductor: Tinned Copper

Insulation: mPPE



Rating Voltage: 600 V

Temperature Range: 105 ℃

Size: 20~22 AWG

Flame Test: VW-1

Reference Standard: UL 758, UL 1581, UL 2556



Performances:

- Longitudinal water blocking.

- Pass air pressure test.

- Pass 1 m water column test.

- Resistance to acids, alkalis.

- RoHS and REACH compliant.

- Halogen Free.

Used for battery pack and BMS of e-car. Suitable for moister and having water condition.



Conductor

Insulation

Conductor Resistance

AWG

No./mm

Diameter
(mm)

Thickness
(mm)

Diameter
(mm)

Maximum
(Ω/km at 20 ℃)

22

19/0.15

0.75

0.43

1.60

59.4

20

19/0.19

0.95

0.46

1.87

36.7



UL11028 Water blocking wire


Conductor: tinned copper wire

Insulation: mPPE

- Rated temperature: 105°C

- Rated voltage: 600V

- Executive standard: UL758, UL1581, CSA C22.2 No.210

- Passed ULVW-1 vertical burning test

performance

- Longitudinal water blocking.

- Pass air pressure test

- Pass the 1m water column test.

- Acid and alkali resistance.

- RoHS and REACH environmental protection.

- Halogen free.

Battery packs and BMS for electric vehicles. Suitable for wet and water environment.

It belongs to the water-blocking line UL certified water-blocking line water-blocking cable for electric vehicles.



Conductor

Insulation

Conductor Resistance

AWG

No./mm

Diameter
(mm)

Thickness
(mm)

Diameter
(mm)

Maximum
(Ω/km at 20 ℃)

22

19/0.15

0.75

0.43

1.60

59.4

20

19/0.19

0.95

0.46

1.87

36.7
